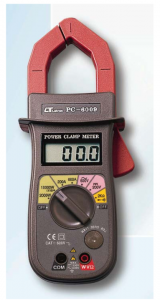

مشخصات، قیمت و خرید وات متر توان سنج کلمپی لوترون مدل LUTRON PC-6009
دستگاه وات متر پاور متر یا توان سنج کلمپی لوترون LUTRON PC-6009 قابلیت اندازه گیری جریان، ولتاژ، مقاومت، دیود و توان را دارد و می تواند به صورت کامل نیاز های شما را با صرف کمترین هزینه براورده نماید.این دستگاه ساخت کمپانی لوترن تایوان بوده و دارای یکسال گارانتی و پنج سال خدمات پس از فروش می باشد. این محصول را می توانید از شرکت فنی و مهندسی سیانکو تهیه نمائید.

ویژگی های توان سنج کلمپی لوترون PC-6009
- AC رزولیشن توان بالا از 1 وات 10000 وات
- ACA (200A , 600A)
- 600 V ولتاژ AC
- 200 V ولتاژ DC
- مقاومت تا 20 کیلو اهم
- تست دیود
- سایز : 230 * 74 * 38 mm
مشخصات فنی دستگاه |
| نمایشگر | 13 mm (0.5″) LCD, 3 1/2 digits.
Max. indication 1999. |
| اندازه گیری | Watt (true power).
DCV, ACV, ACA, ohms, Diode. |
| پلاریتی | Automatic Switching, ” – ” indicates
negative polarity. |
| سنسور جریان | Hall effect sensors. |
| ورودی بالا | Display shows ” 1 ” or ” -1 “. |
| توان سنج | Built-in external adjustment knob. |
| زمان نمونه برداری | Approx. 0.4 second. |
| باتری | Heavy duty type or Alkaline battery.
DC 9V battery. 006P, MN1604 ( PP3 )
or equivalent. |
| دمای کاری | 0 to 50 ( 32 to 122 ). ℃ ℉ |
| رطوبت کاری | Less than 80% RH. |
| توان مصرفی | Approx. DC 15 mA. |
| وزن | 480 g/0.88 LB (including battery). |
| ابعاد | HWD 230 x 74 x 38 mm.
(9.1 x 2.9 x 1.5 inch) |
| سایز کنداکتور | 73.5 mm ( 2.9 inch ) – out side. |
| لوازم جانبی | Operation manual………….. 1 PC.
Test lead (red & black)…… 1 pair. |
کیف حمل
(سفارشی) | Model : CA-05A |
مشخصات الکتریکال ( 23 ± 5 ) ℃ |
| قابلیت | محدوده | رزولوشن | دقت | محافظ در برابر اضافه بار |
توان AC
(true power)
* ref. remark | 2,000
Watt | 1 Watt | ± ( 2.5% + 8d ) | Volt input :AC 600V
Current input :AC 50A |
10,000
Watt | 10
Watt | ± ( 3% + 5d ) |
| ولتاژ DC | 200 V | 0.1 V | ± (0.8 % + 1 d ) | DC 600 V. |
| ولتاژ AC | 600 V | 1 V | ± (1% + 2 d) | AC 600 V. |
| اهم OHMS | 2 k ohm | 1 ohm | ± (1 % + 1 d) | AC/DC 250 V |
| جریان AC | 200 A | 0.1 A | ± (2% + 10 d) | 1000 ACA
(within 1 min.) |
| 600 A | 1 A | ± (2% + 5 d) |
| دیود | Short/non conductance, good/defect test |
| بازر | A continuity testing beeper is equipped, so when
checking circuits of shorts or opens, then it is
not necessary to look at the meter.
The Beeper sounds will be generated if
continuity is present |
POWER CLAMP METER, low power
Model : PC-6009
* (DCV /ACA /ohm/Diode).
* (0~10.000 Watt)(AC,TRUE POWER,10KW).
* High watt resolution : min. 1 watt.
* Watt(AC,true,2,000/10,000W).
* ACA(200A,600A), AC 600V, DC 200V, 2K ohms, diode.
* Size : 230 x 74 x 38 mm.
