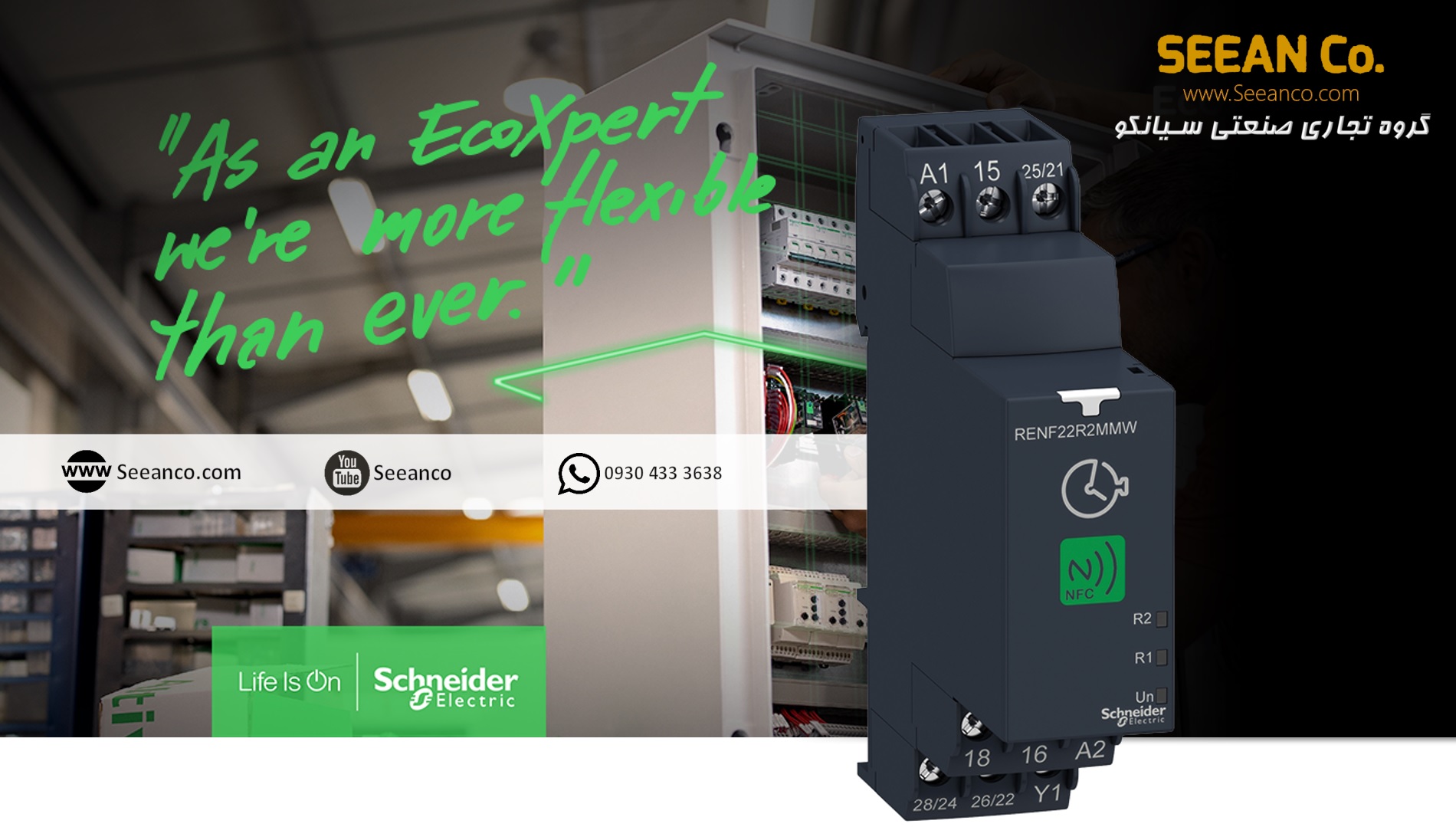

رله تایمینگ پیشرفته و چند منظوره به همراه 2 کنتاکت متغیر مدل RENF22R2MMW یکی از تجهیزات تولید شده تحت برند و نمایندگی اشنایدر الکتریک فرانسه می باشد. تنظیمات در این رله تایمینگ از طریق تلفن هوشمند با استفاده از برنامه رایگان Zelio NFC و تکنولوژی NFC انجام می شود.
رله تایمینگ پیشرفته و چند منظوره به همراه 2 کنتاکت متغیر مدل RENF22R2MMW یکی از تجهیزات تولید شده تحت برند اشنایدر الکتریک فرانسه می باشد. تنظیمات در این رله تایمینگ از طریق تلفن هوشمند با استفاده از برنامه رایگان Zelio NFC و تکنولوژی NFC انجام می شود.
رله RENF22R2MMW دارای 28 تابع زمانی و با تنظیمات دقیق با دقت میلی ثانیه می باشد. پیکربندی ها در این رله از طریق گوشی هوشمند به دستگاه منتقل می شود. این نرم افزار توانایی تعیین زمان بندی برای چندین رله با پیکربندی یکسان را به طور یکنواخت دارا می باشد. برای محافظت از تنظیمات و پیکربندی ها می توان یک رمز عبور اختصاصی به همراه شناسه دستگاه به رله اعمال نمود. گروه صنعتی سیانکو به عنوان عرضه کننده تجهیزات اندازه گیری و ابزار دقیق صنعتی و نمایندگی فروش برند های معتبر بین المللی انواع رله، سافت استارتر و درایو اشنایدر الکتریک فرانسه را همراه با گارانتی و قیمت مناسب در بازار ایران تامین و توزیع می کند
یک رله تایمینک با دو کنتاکت و 28 تابع زمانی
قابلیت تنظیم زمان از 0.05 ثانیه تا 999 ساعت
دقت زمانی 0.01 ثانیه
ولتاژ تغذیه 24 … 240 VAC / DC
تنظیم هوشمند از طریق تلفن همراه هوشمند
انتقال برنامه مستقیماً به رله
سری محصولات | Zelio Time |
نوع محصول و کاربرد دستگاه | Modular timing relay |
نام کوتاه و پارت نامبر | RENF22-RENF22R2MMW |
دستگاه کنترل رله | Android |
ورژن نرم افزار | V4.4 and above |
نرم افزار کنترل رله | Zelio NFC (downloadable from Google Play store) |
نوع خروجی مجزا | Relay |
جریان خروجی اسمی | 8 A |
نوع کنتاکت ها | 2 C/O timed contact, cadmium free 1 C/O timed and instantaneous contact, cadmium free |
نوع تاخیر زمانی | Tt Ak Ah Di Pt H At Dt Ad A Qt N Li L Qtt O Ht Lit C Lt W Tl P Ac Dit B D Bw |
محدوده تاخیر زمانی | 0.1 s…999 h |
نحوه سازگاری محصول | NFC enabled mobile device |
[Us] نرخ ولتاژ تغذیه | 24…240 V AC/DC |
ورودی ولتاژ | <= 2.4 V |
نرخ ولتاژ | 0.85…1.1 Un |
ماکزیمم توان RF ارسالی | 0.0002 mW |
NFC فرکانس کاری | 13.56 MHz |
فرکانس تغذیه | 50…60 Hz +/- 5 % |
کنتاکت ها و ترمینال ها | Screw terminals, 1 x 0.5…1 x 3.3 mm² (AWG 20…AWG 12) solid without cable end Screw terminals, 2 x 0.5…2 x 2.5 mm² (AWG 20…AWG 14) solid without cable end Screw terminals, 1 x 0.2…1 x 2.5 mm² (AWG 24…AWG 14) flexible with cable end Screw terminals, 2 x 0.2…2 x 1.5 mm² (AWG 24…AWG 16) flexible with cable end |
میزان نیروی گشتاور | 0.6…1 N.m conforming to IEC 60947-1 0.60…0.99 N.m conforming to IEC 60947-1 |
جنس بدنه | Self-extinguishing |
دقت تکرار پذیری | +/- 0.2 % for 10 s…999 h time delay range +/- 0.5 % for 100 ms…10 s time delay range |
اتلاف دمایی | +/- 0.05 %/°C |
اتلاف ولتاژ | +/- 0.2 %/V |
دقت تنظیمات تاخیر زمانی | +/- 1 % for 1…999 h time delay range at 25 °C +/- 2 % for 1 h time delay range at 25 °C +/- 20 ms for 100 ms…10 s time delay range at 25 °C |
پهنای پالس سیگنال کنترلی | 100 ms with load in parallel 60 ms no-load |
مقاومت عایق | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
زمان بازیابی | 120 ms on de-energisation |
توان مصرفی بر حسب VA | 3 VA at 240 V AC |
توان مصرفی بر حسب W | 1.5 W at 240 V DC 0.6 W at 24 V DC |
ظرفیت سوییچینگ بر حسب VA | 2000 VA |
حداقل جریان سوییچینگ | 10 mA at 5 V |
حداکثر جریان سوییچینگ | 8 A |
ماکزیمم ولتاژ سوییچینگ | 250 V |
چرخه کاری | 100000 cycles for resistive load, 8 A at 250 V, AC |
چرخه مکانیکی | 10000000 cycles |
تاخیر توان | 100 ms |
creepage distance | 4 kV/3 conforming to IEC 60664-1 |
رده استاندارد اضافه ولتاژ | III conforming to IEC 60664-1 |
استاندارد ایمنی | MTTFd = 227.5 years 100 % duty cycle continuous operating condition at 30 °C |
وضعیت نصب | Any position |
نوع شیار و ریل | 35 mm DIN rail conforming to EN/IEC 60715 |
ال ای دی وضعیت | LED Un: (steady), green for power ON LED R1: (steady), amber for relay energised LED R2: (steady), amber for relay energised LED pairing: (steady), green for communication status LED Un: (fast blinking), green for diagnosis mode LED R1: (blinking), amber for timing in progress LED R2: (blinking), amber for timing in progress |
Maximum communication distance | 10 mm |
پاسخ زمانی | 2 s |
عمق | 22.5 mm |
وزن | 0.0904 kg |
مشخصات محیطی | |
immunity to microbreaks | 10 ms |
مشخصات دی الکتریک |
2.5 kV for 1 mA/1 minute at 50 Hz with between relay output and power supply with basic insulation with basic insulation |
استاندارد | EN 61000-6-1 EN 61000-6-2 EN 61000-6-4 EN 61812-1 EN 61000-6-3 |
directives | 2014/35/EU – low voltage directive 2014/53/EU – radio equipment directive 2014/30/EU – electromagnetic compatibility |
تاییدیه محصول | CE CSA KC UL CCC EAC DNV-GL |
دمای کاری | -20…60 °C |
مقاومت دستگاه در برابر دما | -40…70 °C |
IP درجه محافظت | IP40 housing: conforming to IEC 60529 IP40 front face: conforming to IEC 60529 IP20 terminals: conforming to IEC 60529 |
درجه آلودگی | 3 conforming to IEC 60664-1 |
مقاومت دستگاه در برابر لرزش | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
مقاومت در برابر ضربه | 15 gn not operating for 11 ms conforming to IEC 60068-2-27 5 gn in operation for 11 ms conforming to IEC 60068-2-27 |
رطوبت نسبی | 95 % at 25…55 °C |
استاندارد مطابقتی الکترو مغناطیسی | Electrostatic discharge immunity test – test level: 6 kV level 3 (contact discharge) conforming to EN/IEC 61000-4-2 Electrostatic discharge immunity test – test level: 8 kV level 3 (air discharge) conforming to EN/IEC 61000-4-2 Fast transients immunity test – test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 Fast transients immunity test – test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 Surge immunity test – test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 Surge immunity test – test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 Radiated radio-frequency electromagnetic field immunity test – test level: 10 V level 3 (0.15…80 MHz) conforming to IEC 61000-4-6 Electromagnetic field immunity test – test level: 10 V/m level 3 (80 MHz…1 GHz) conforming to IEC 61000-4-3 Immunity to microbreaks and voltage drops – test level: 30 % (500 ms) conforming to IEC 61000-4-11 Immunity to microbreaks and voltage drops – test level: 100 % (20 ms) conforming to IEC 61000-4-11 Radiated emission class B conforming to EN 55022 Conducted emission class A conforming to EN 55022 Electromagnetic field immunity test – test level: 3 V/m level 2 (1.4 GHz…2 GHz) conforming to IEC 61000-4-3 Electromagnetic field immunity test – test level: 1 V/m level 1 (2…2.7 GHz) conforming to IEC 61000-4-3 |
